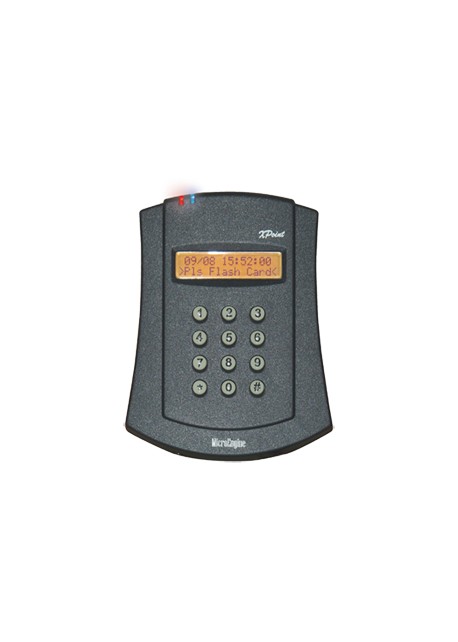

MICROENGINE XP-M1000X

* Card User Memory : 1000 (2000 in Car Park Access Mode) * Transaction Records : 10000 (5000 in Car Park Access Mode) * Single Unit Reader, Keypad & Controller : YES * Build-In Card Reader : YES – EM Card (Mifare Card Model Available) *

More details

New

More info

XP-M1000X Time Attendance + Access Control Systems
XP-M1000X is a Standalone Proximity Card Reader and Controller with Keypad and LCD Display. It can connect to an Exit Reader XP-RDPRX. The system supports up to 1,000 card users with 10,000 transaction records in its memory for Time Control (Time Attendant Mode)

Features :
Card User Memory : 1000 (2000 in Car Park Access Mode)
Transaction Records : 10000 (5000 in Car Park Access Mode)
Single Unit Reader, Keypad & Controller : YES
Build-In Card Reader : YES – EM Card (Mifare Card Model Available)
Access Operation Mode : Card Only, PIN Only, Card + PIN Fingerprint Template Capacity (1:N) : NO
Display : 2 x 16 Character LCD with Back Light
Keypad : Epoxy Coated High Durability Keypad
Time Set & Time Zone : 50
Holiday Dates : 30
Auto PIN : 10 Sets
Built-in Real Time Clock with Battery : YES
Car Park Mode External Entry Reader : YES
Exit Reader : YES
Exit Push Button : YES – with Time Zone Control
Support Wiegand 26-bit Reader : YES
Anti-Passback : YES
Controller Operation Mode : Access Control Mode, Time Attendance, Car Park Supports Programming Through Keypad & LCD at the Reader : YES
Lock Control, Door Sensor & Exit Button Input : YES – Through MAS-RBS Located Inside the Door
Configurable Lock Release Time : YES – 0~99secs
Configurable Door Open Time : YES – 0~99secs
Auto Lock Release Time Zone : YES
Sensor & Output : YES – with External MiO-44, 4 In 4 Out
Card Data Flash Memory : YES
Onboard Buzzer : YES
Communication Ports : RS232 / RS485
Can be Linked to PC for Software Control : YES
Power : 12VDC
Dimension : 152mm (H) x 122mm (W) x 32mm (D)
